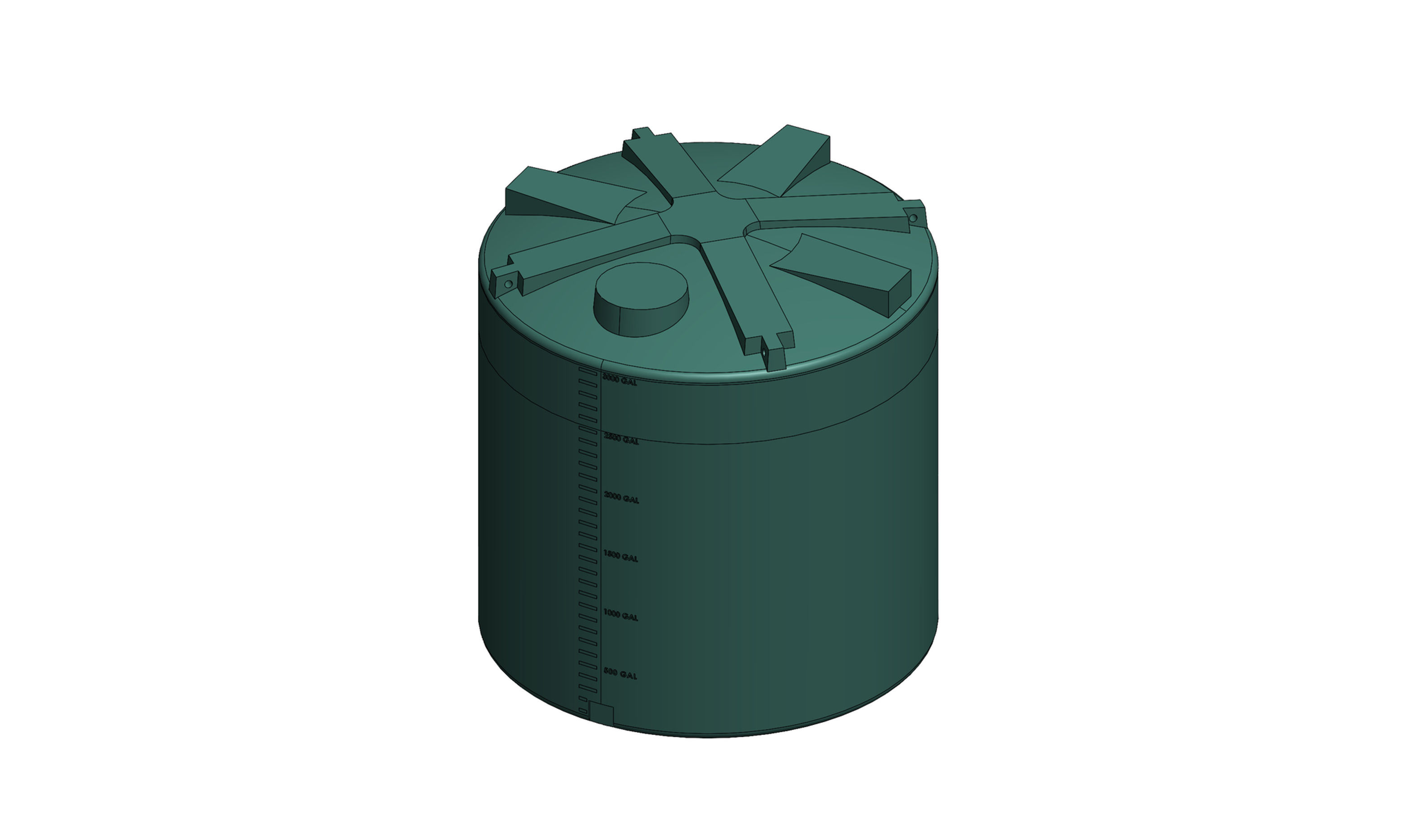

3000 Gallon Vertical Water Tank
Polyethelene (Poly) Tank
1.2 Specific Gravity
Constructed with durable, rotationally molded polyethyelene resin
Resistance to cracks, chips, and ruptures
UV inhibitors to protect liquid contents from direct sunlight
Indoor and outdoor use
Color: Green

Vertical Tanks are for storage and are not to be pressurized.

Flexible Plumbing & Structural Expansion
When managing a high-capacity 3000g cylinder water storage tank, understanding hydrostatic physics is critical for a long-lasting installation. A vessel of this scale undergoes natural expansion and contraction as it fills and empties, shifting under more than 25,000 pounds of liquid weight. At USA Tank, we explicitly engineer our heavy-duty vertical water storage tanks to handle these structural dynamics, but your external plumbing configuration must be just as adaptable.

Attaching rigid PVC pipelines directly to the bottom bulkhead fitting creates severe mechanical stress points that can eventually crack the connection. To protect your investment, we recommend installing a flexible expansion coupling immediately adjacent to the primary outlet. This essential mechanical buffer isolates the pipe network from the subtle movement of the 3000g cylinder water tank, preventing structural pipeline stress, eliminating leak paths, and ensuring your high-volume water supply remains completely secure through years of heavy-duty operation.

Contact our team today to learn more.

Frequently Asked Questions
Why can't I connect rigid PVC pipe directly to the tank bulkhead?
When a 3000g cylinder water tank is fully loaded, the internal pressure causes the poly walls to flex and expand outwardly. If you run a rigid PVC pipe directly into the bottom bulkhead fitting, this structural movement exerts immense leverage against the threads. Over time, this continuous shifting will stress and snap the rigid plastic pipeline or strip the bulkhead. Using a flexible hose or expansion joint allows the system to move safely without causing damage.

What type of flexible expansion joint should I use for a tank of this scale?
For heavy-duty vertical water storage tanks, we recommend utilizing a high-quality flexible rubber expansion joint (such as an EPDM bellows coupling) or a section of heavy-duty, reinforced flexible PVC suction hose at least 18 to 24 inches in length. Ensure that whatever flexible connector you choose is rated for potable water if you are storing drinking water supplies.

Does the tank expand vertically, horizontally, or both?
The expansion is primarily horizontal, meaning the diameter of the 3000g cylinder water storage tank increases slightly as it fills to maximum capacity. However, the bottom layout of the tank also settles deeply into its foundation under the 12.5-ton weight load. A flexible coupling accommodates both the outward expansion of the cylinder walls and any subtle vertical settling of the base.

Will utilizing a flexible expansion connector impact my water pressure or flow rate?
Not at all. As long as you match the inner diameter of the flexible coupling to the size of your primary bulkhead outlet (typically 2 inches or 3 inches on high-volume systems), your flow rate and hydrostatic pressure will remain entirely unaffected. The flexible joint simply serves as a structural shock absorber for your plumbing grid.
